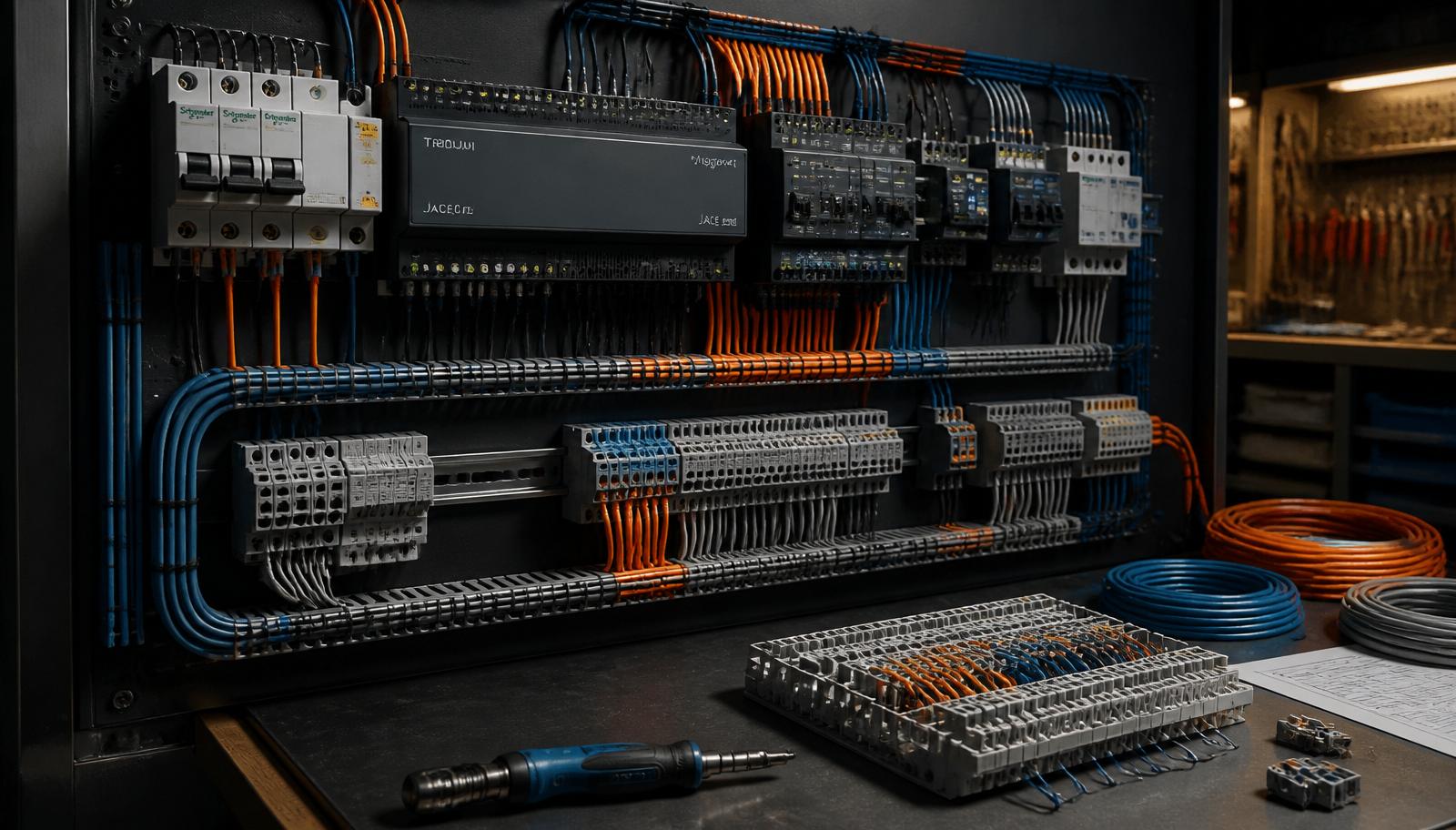

BMS control panels designedin-house, built to BS EN 61439 —for the plant they actually control.
Panel design authored by controls engineers, manufactured by our panel-shop partner to BS EN 61439 — with full drawing pack, GA, schematics and asset labels handed over at delivery.
BMS Panel Manufacturing, explainedwithout the marketing gloss.
BMS panel manufacturing is the design and build of the enclosures that house the Building Management System's controllers, contactors, protection, power supplies, network devices and terminations — engineered specifically for the plant they control and the site they will live in.
M&E contractors, developers, landlords, healthcare estates and end-clients specifying BMS panels for new-builds, refurbishments and legacy-replacement projects across London and the South East.
Any new BMS installation; any refurbishment where existing panels are non-compliant or past economic repair; any project where a specialist has recommended replacing hobbyist or non-standard enclosures with panels that will pass insurance and audit scrutiny.
Panels are the physical foundation the BMS lives on for the next fifteen years. A poorly designed panel is a lifetime of nuisance faults, thermal issues, cable-management nightmares and audit failures.
What happens whenthis gets left alone.
A cheap panel is the most expensive component of a controls project — priced across its lifetime.
- Panels built to no recognised standard fail insurance, landlord and building-control audits; forced replacement mid-programme is common.
- Undersized power supplies, wrong-rated protection and poor thermal management cause intermittent controller faults years after handover.
- Poor cable management and no proper labelling turn every future service visit into an archaeology exercise.
- Missing GA drawings, schematics and asset lists at handover leave the client unable to service or extend the panel later.
- Non-compliant panels in a hospital or landlord environment become a compliance liability at the first insurer audit.
- ×Buying panels from the cheapest available fabricator with no BMS design input.
- ×Skipping the pre-design phase — panels are then designed around whatever contactor was in stock that week.
- ×No spare-way allowance for future expansion — every future upgrade needs a new panel.
- ×Poor segregation between low-voltage controls and higher-voltage power — a lifetime of induced-noise faults.
How we deliverbms panel manufacturing.
- Step 01Design intake
Points schedule, controls narrative and single-line drawings reviewed. Panel scope, footprint, protection and thermal load calculated.
- Step 02Panel design (in-house)
GA, schematics, terminal schedules, cable schedules and labels authored in-house by controls engineers — not outsourced to a fabricator.
- Step 03Design review & sign-off
Client and consultant review of GA and schematics before manufacture starts. Changes captured, not absorbed into cost later.
- Step 04Manufacture
Panels built by our panel-shop partner to BS EN 61439 — the recognised standard for switchgear and controlgear assemblies.
- Step 05Factory testing
Panels tested prior to delivery — continuity, insulation, functional test of internal wiring against schematics.
- Step 06Delivery & handover
Delivery with drawing pack (GA, schematics, terminal schedule), asset labels and 1-year workmanship warranty on the panel.
What the right bms panel manufacturingactually gives you.
The recognised UK / European standard for switchgear and controlgear assemblies. Passes insurance and audit review without argument.
Not a fabricator guessing at BMS needs — designed by the engineers who will later commission and service it.
GA, schematics, terminal schedule, cable schedule and asset labels delivered with the panel.
Sensible spare-way and terminal allowances designed in from day one — future upgrades don't need a full panel replacement.
Power supplies, protection and thermal management sized correctly — not a copy of the last project.
Standard on every panel, in addition to the manufacturer warranties on supplied components.
Detail thatbuyers ask about.
Panel scope varies by plant type, network topology, protection strategy and site environment:
BS EN 61439 build standard. Design tools and standard component families — MCBs, MCCBs, isolators, contactors, DIN-rail terminals, Phoenix Contact power supplies, Tridium/Distech/iSMA controllers as required. £20M PL, £10M EL, £10M PI insurance behind every panel.
Residential heat-network and communal-plant panels focus on reliability and quiet operation in occupied buildings; commercial and healthcare panels typically carry more sub-metering, more granular protection and formal compliance documentation.
Air-handling and fan-coil-unit panels for commercial offices, retail units and mixed-use developments.
Boiler sequencing, heat-network circulation, thermal-store control and interlock panels for commercial and residential heat networks.
Chiller sequencing, dry-cooler and cooling-tower control panels for commercial, data-centre and industrial applications.
Consolidated metering panels housing Circutor, Janitza, Eastron, Hobut and pulse-input hardware for M&T reporting on SkySpark or N4 Energy Manager.
Panels for hospital plantrooms, laboratory and pharmacy environments — with alarm escalation, interlocks and redundancy accounted for in design.
Direct-swap or phased-replacement panels for legacy proprietary BMS strip-outs, matched to existing containment and cable runs.
BMS Panel Manufacturingquestions, answered.
Anything not covered here? Call us on 07500 040578.
BMS work is bespoke and project-based — pricing is quote on application, issued in writing after a site or specification review.
Are panels built in-house?
+
Design is in-house by our controls engineers. Manufacture is by our panel-shop partner to our design and to BS EN 61439 — worded transparently rather than claiming an in-house workshop we don't operate.
What standard are the panels built to?
+
BS EN 61439 — the recognised UK/European standard for low-voltage switchgear and controlgear assemblies.
Do you provide GA and schematics?
+
Yes — every panel is delivered with GA, schematics, terminal schedule, cable schedule and asset labels. The client owns the drawing pack.
How long from order to delivery?
+
Panel programme depends on size and component lead times — typically a few weeks for a standard commercial panel; longer for large sequencing or metering panels. We agree the programme in writing at order.
Do you allow for future expansion?
+
Sensible spare-way and terminal allowances are designed in from day one so future upgrades don't force a full panel replacement.
Do you carry a warranty on the panel?
+
Yes — a one-year workmanship warranty on the panel, alongside the manufacturer warranties on the supplied components inside it.
Can you match an existing panel design for a retrofit?
+
Yes — direct-swap and phased-replacement panels matched to existing containment and cable runs are a common project type.
Do you factory-test panels before delivery?
+
Yes — continuity, insulation and functional testing of internal wiring against the schematics is completed before the panel leaves the workshop.
